The fully automatic salt harvester is specifically designed for sea salt fields, salt lakes, and industrial crystallized salt production sites. It integrates salt block crushing, raw salt collection, brine suction, hoisting and conveying, and automatic loading into a single system. The equipment uses low-pressure rubber tracks for mobility, effectively protecting the bottom of salt pans and adapting to tidal flats, muddy terrain, and complex salt field environments.
With a harvesting capacity of 150–400 metric tons per hour and powered by a 55-kW diesel engine, it allows a single operator to perform continuous harvesting operations. To meet the diverse needs of salt production facilities, we offer models without a crushing function, models with a crushing function, small-scale custom models, and standard tracked models. These solutions help salt companies reduce labor costs, improve raw salt recovery rates, and achieve automated upgrades in salt field harvesting operations.
Salt harvester Design Highlights and Key Advantages
- Cost & Efficiency Optimization: Replace manual harvesting, solve labor shortage and low efficiency, support continuous production and boost profits.
- Wide Working Adaptability: Optional front crusher for hardened salt; standard model fits loose salt layers, meeting diverse salt field demands.
- Salt Pond Protection: Widened rubber crawler with low ground pressure protects pond bottoms, adapts to complex terrains and reduces maintenance costs.
- Stable Powerful Performance: 55kW high-torque diesel engine runs steadily under heavy load, thick salt layers and high-salinity environments.
- High Salt Recovery Rate: Dual-pump suction and high-pressure flushing clean residual salt thoroughly, avoid blockage and reduce downtime.
- Integrated Automatic Operation: Integrates crushing, harvesting and conveying, compatible with assembly lines for large-scale automatic production.
- High Equipment Utilization: Detachable reducer supports other equipment power output, realizing multi-function use and saving investment.
Industries Suitable for the Salt Reclaimers
Our salt harvester supports mechanized harvesting of sea salt, lake salt, solar salt, and industrial crystalline salt. It fits salt fields of all scales and can be matched with salt transport vehicles and salt pond compactors to form an integrated production system. Widely used in global salt industry projects and exported to Asia, Africa, the Middle East, South America, and other regions.
Main Application Scenarios:

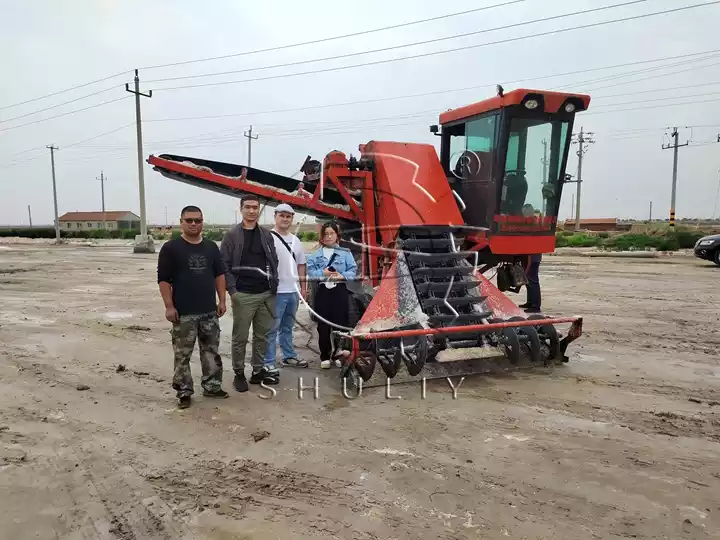

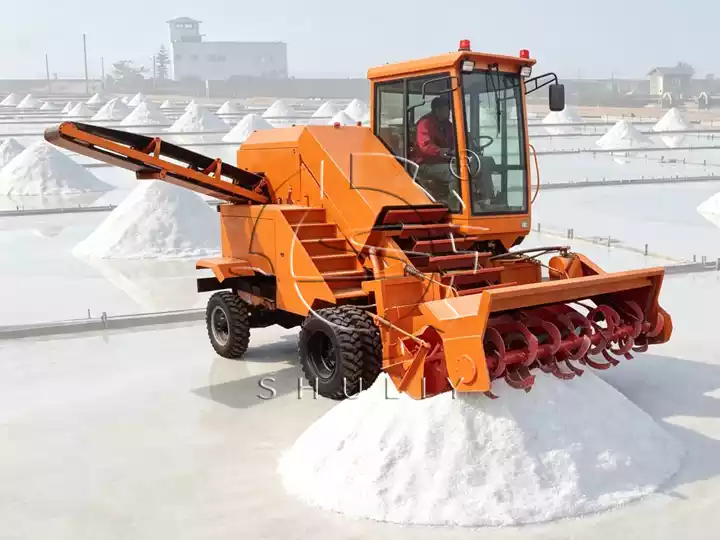

- Coastal Sea Salt Fields: Suitable for large-scale harvesting in coastal sea salt crystallization ponds and greatly improves working efficiency in peak seasons.
- Inland Salt Lake Plants: Ideal for mechanized mining and processing of natural lake salt resources.
- Industrial Salt Factories: Realizes automatic raw salt harvesting for salt mine crystallization ponds and refined salt production lines.
- Large-scale Salt Projects: Supports full-process mechanization including salt harvesting, transportation and pond maintenance, applicable for commercial salt projects at home and abroad.
How does an industrial salt harvester work?
The automatic salt harvester realizes continuous mechanized operation including salt crushing, collecting, brine suction and automatic loading, with two working modes: crushing type and non-crushing type.
Complete Working Process:
- Salt Preprocessing: The crushing model breaks hardened and caked salt into loose fine salt; the non-crushing model directly collects loose crystalline salt to adapt to different salt field conditions.
- Salt and Brine Collection: The spiral hopper gathers salt-brine mixture. Dual pumps work together for fast suction and transmission, while high-pressure water flushes residual salt at the bottom to improve recovery rate.
- Lifting and Automatic Loading: The vertical conveyor transports salt materials to the top discharge port for automatic stacking or direct loading onto salt transport vehicles, realizing continuous unmanned harvesting.
The whole salt harvester machine runs automatically and stably. On-site operation videos of crushing, traveling, and loading are available.
Technical Parameters of Salt Harvesting Machine
| Item | Parameters |
| Model | SL-02 |
| Harvesting Capacity | 150-400 tons/hour |
| Engine Power | 55kW Diesel Engine |
| Working Width | 2000mm |
| Maximum Salt Layer Thickness | 200mm |
| Track Wheelbase | 1575mm |
| Machine Weight | 4000kg |
| Overall Dimension | 5000×2130×2900mm |
| Applicable Salt Pond Requirement | Pond Area ≥1000㎡, Ground Bearing Capacity ≥0.15MPa |
Full Model Classification & Supporting Equipment
Our salt harvesters include complete series models to match all kinds of salt fields, covering mini customized, standard crawler, crushing and non-crushing types, with professional supporting equipment for integrated operation.
Full Series Model Classification

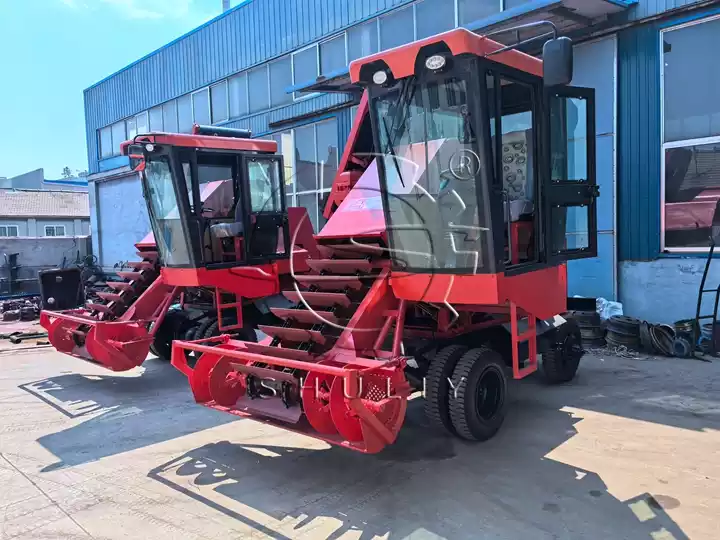

- Non-crushing Type: Simple structure, cost-effective and easy maintenance. Ideal for small salt fields and inland salt lakes with thin and loose salt layers without hard caking.

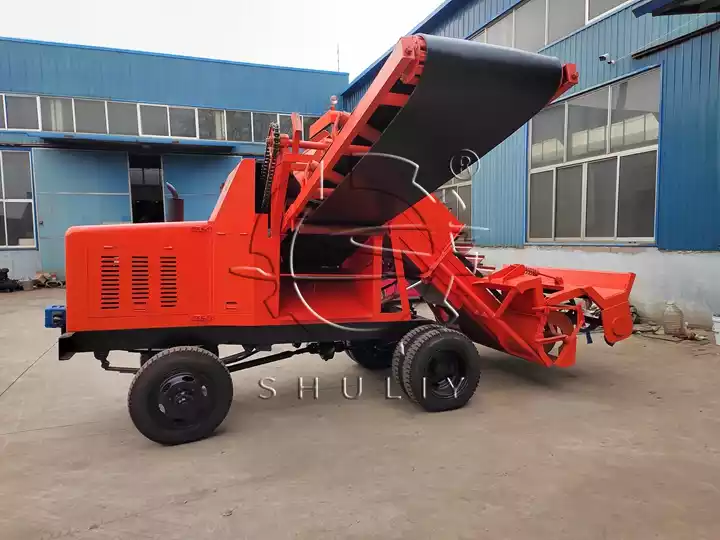

- Crushing Type: Equipped with front crushing roller to break hardened salt blocks, avoid pipeline blockage and improve harvesting efficiency. Perfect for large sea salt fields and thick salt layer working conditions.

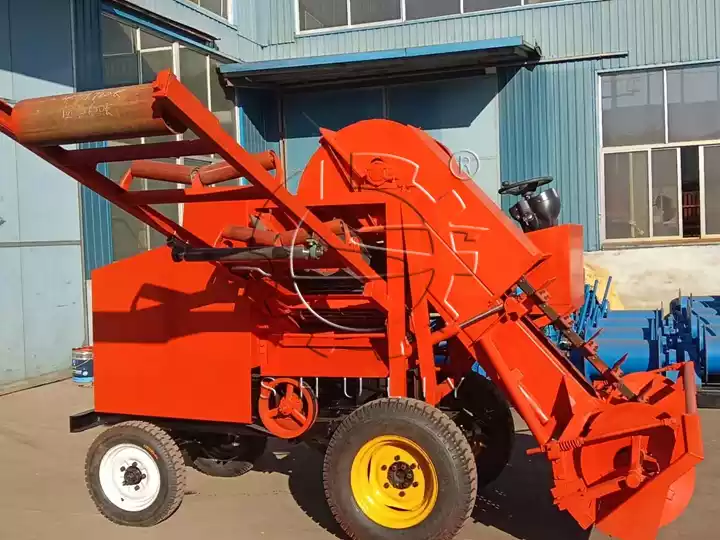

- Custom Mini Type: Compact and flexible body, suitable for small crystallization ponds within 1000㎡, convenient for narrow passage transfer and small-scale salt production.

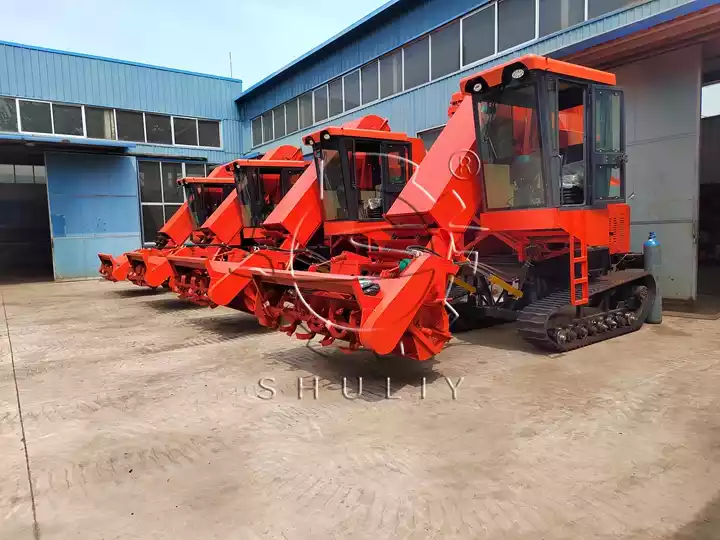

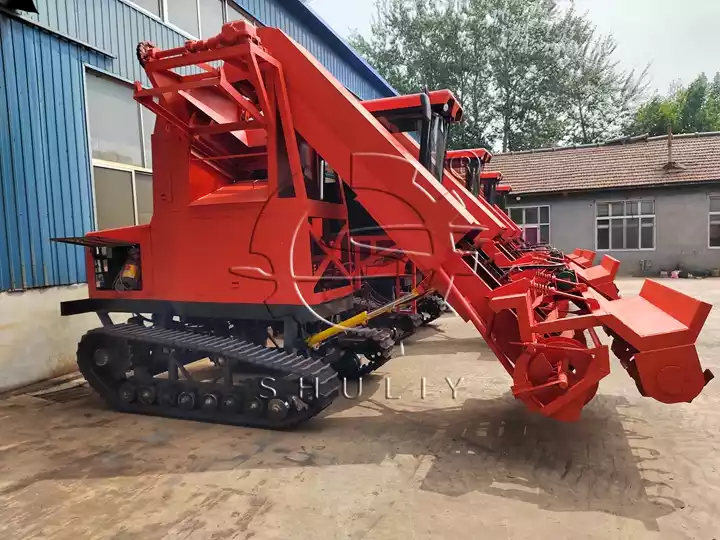

- Standard Crawler Type: Equipped with 55KW power and a 2 m working width, available in crushing and non-crushing configurations. It is the universal model for medium- and large-scale sea salt and lake salt production bases.
Supporting Auxiliary Equipment

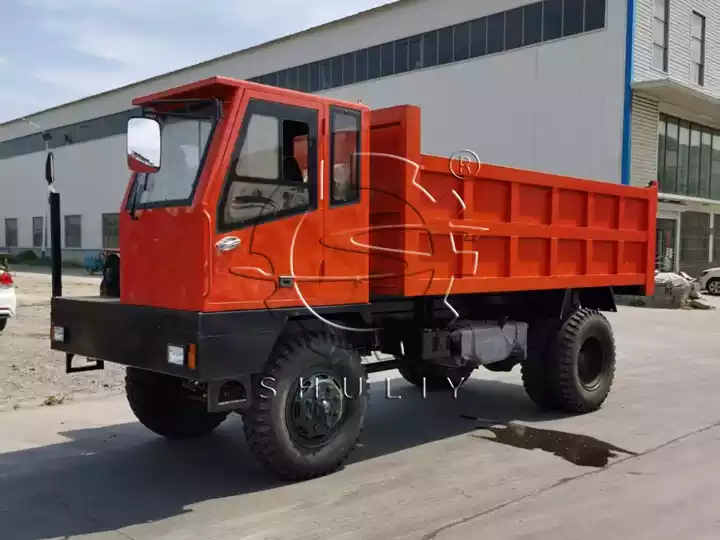

- Salt Transport Vehicle: Directly connects with the harvester discharge port for synchronous material receiving and transportation, realizing integrated harvesting and conveying without manual secondary handling.

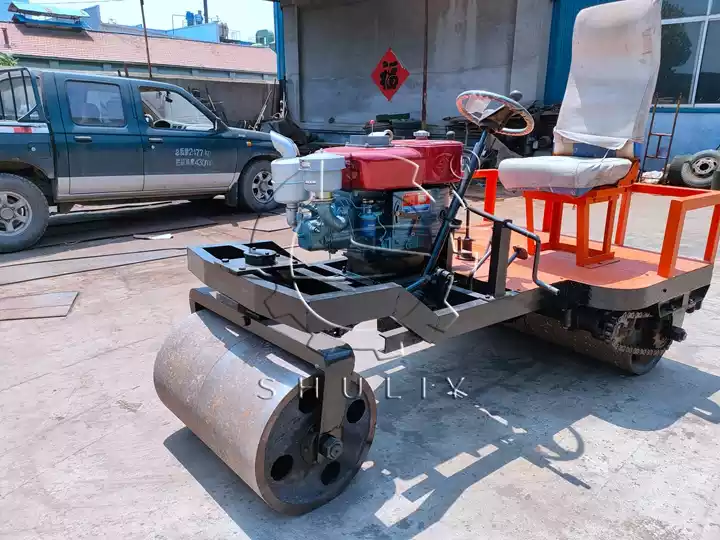

- Salt Pond Compactor: Levels and compacts the pond bottom after harvesting, repairs the salt field surface, extends service life of crystallization ponds and ensures stable salt crystallization quality for the next cycle.
How to Choose a Right Salt Harvester for Your Salt Farm?
5 core criteria for quick and accurate selection:
- Salt Layer Condition: Crushing model for hardened salt crust; basic model for loose thin salt; custom mini model for small salt ponds.
- Production Capacity: Mini machine for ＜150 tons/day; standard crawler model for 150-300 tons/day; high-power crushing model for ＞300 tons/day.
- Site Terrain: Crawler type for muddy beaches and large salt ponds, anti-sinking and bottom-protective; lightweight model for flat and hard small salt ponds.
- Supporting Demand: Equip with salt transport vehicles for mass harvesting; match with pond compactors for full-process mechanization.
- Budget & Benefit: Cost-effective non-crushing model for small-scale production; high-end crushing model for long-term large-scale operation with higher efficiency and reliable after-sales service.
Tell us your salt field area, average salt layer thickness and daily harvesting output, and we will provide complete equipment quotations, on-site operation videos and a customized mechanization solution for your salt plant.
In addition to automatic salt harvesters, we also supply belt conveyors, material elevators, solid waste shredders, and material cleaning and screening equipment. We support full-process mechanization, including material conveying, hard block shredding, impurity screening, and waste recycling, providing one-stop solutions for salt production and resource recovery.
