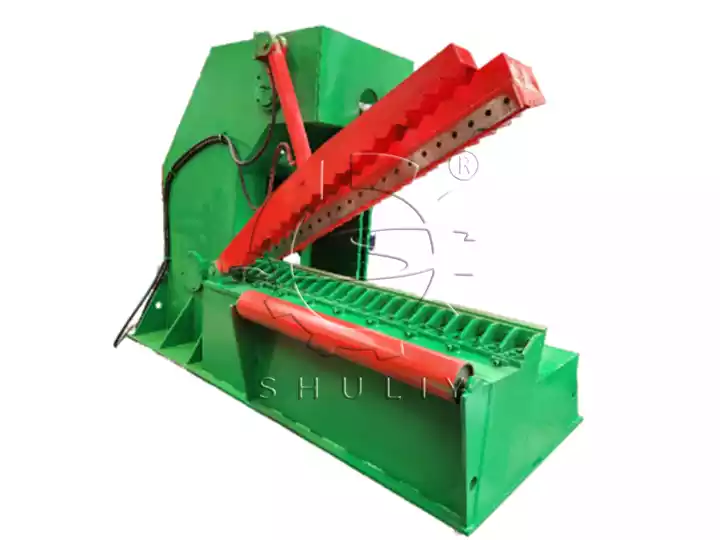

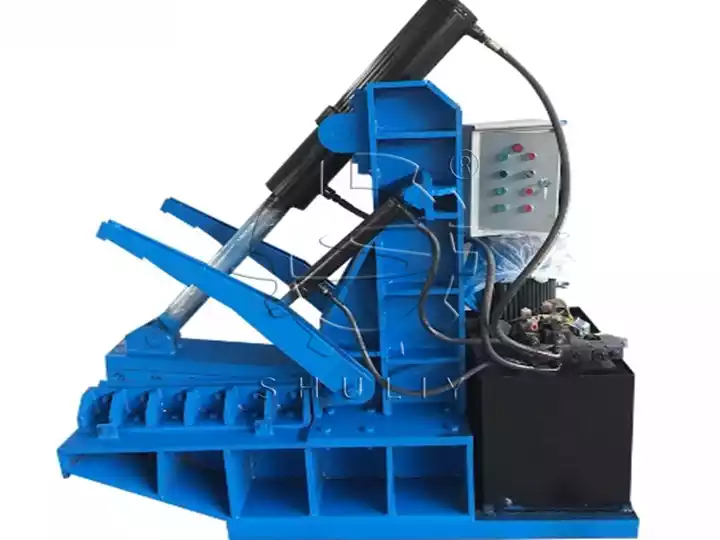

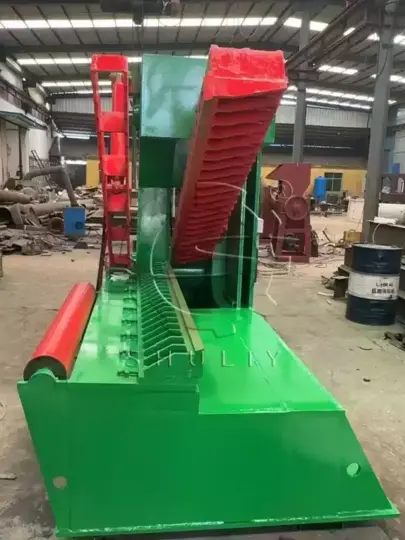

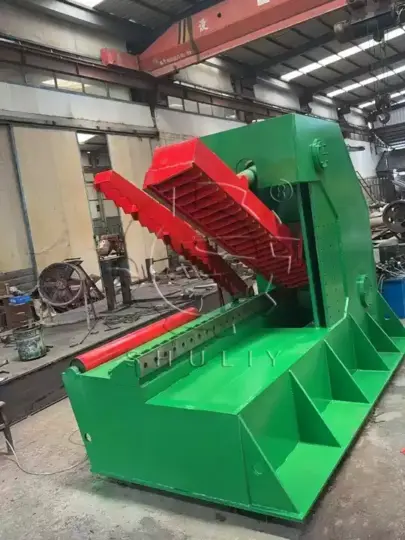

tire cutting machine OTR tyre cutter equipment

The tire cutting machine can cut truck tires with a diameter of ≤1200 mm into chunks of ≤900 mm in one go using a high-strength hydraulic shearing system, significantly simplifying the subsequent shredding and separation process.

For engineering-grade OTR tires with removed rim steel wire, it is equipped with special slicing tool. Highly efficient slicing process provides ideal pretreatment for rubber pulverization and steel wire separation.

The tire cutting machine is compact and easy to operate, requiring only one person to feed the tires into the machine for continuous batch operation. It supports flexible on-site configurations with electric or hydraulic drive modes and can process up to 60 tires per hour.

Modular knives and cutting modes can be freely switched, and cutting block sizes (e.g. 50 x 50 mm) can be customized. This perfectly matches a wide range of back-end processes such as recycled rubber, thermal cracking and deep shredding.

Tire Cutting Machine Advantage Highlights

• Large cutting torque, high speed, cutting thickness accuracy ±2mm.
• Strong applicability, can meet the pretreatment needs of different specifications of tires.
• High degree of automation, only one button start, greatly reducing the intensity of manual operation.
• Modularized tool design, cutting block size can be adjusted or change the tool as needed.
• Supports electric or diesel engine drive switching, flexible configuration according to the site power conditions.
• The cut tires can be nested and stacked, reducing the volume by up to 60%, significantly reducing transportation and storage costs.
• Cutting off and draining the water in the inner cavity, eliminating the dead space of the waste tires, effectively reducing the breeding of mosquitoes and hygiene hazards.
• The large pieces of tires after cutting are easier to be crushed and separated from steel wires, which helps the downstream recycling process of recycled rubber, granules and carbon black.

rubber tire cutter machine Application Scope

• The cut chunks can be directly used for recycled rubber (rubber granule purity ≥98%), pyrolysis oil and other resource utilization processes, with an annual handling capacity of 36,000 tons of tires.
• Suitable for truck tires, engineering tires (OTR) and other retreading needs, old tires are cut into regular blocks, which can extend the service life of tires.
• After secondary processing, the cut tire pieces can be made into sound insulation materials, rubber floor tiles and other environmentally friendly building materials. In addition, the output granules are suitable for industrial scenarios such as rubber runways and sports mats.

heavy duty tire cutter workflow in five steps

1. The waste tires are placed flat on the load roller at the front end of the tire cutting machine, and the tires are firmly locked by manual or pneumatic clamps to ensure the stability of the cutting process.
2. Start the hydraulic system, the hydraulic oil is delivered to the working cylinder through the pipeline to provide large thrust for the shear arm.
3. The shear arm drives the serrated knife frame to press down vertically, and the knife teeth cooperate with the pressure roller to cut the sidewall of the tire at one time.
4. After completing the first cutting, release the clamp or rotate the roller to move the tire to the next cutting position and repeat the downward pressure of the knife frame until the tire is divided into the required large pieces.
5. After cutting, open the unloading port at the bottom of the machine, and the rubber blocks and steel wires separated from the steel wire pieces automatically fall into the respective collection area, which is convenient for subsequent crushing and recycling.

parameters of waste tyre cutter machines

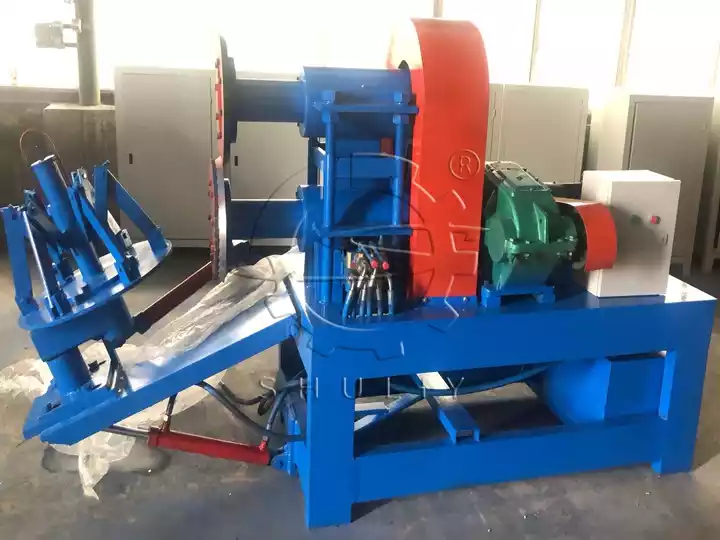

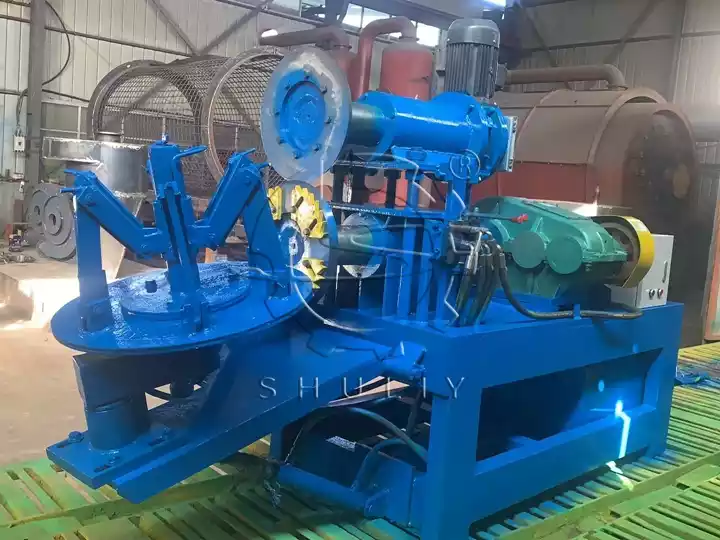

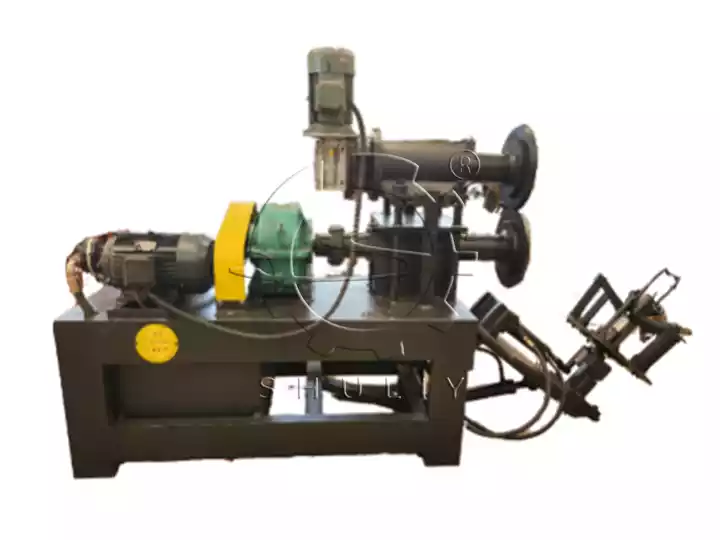

In addition, we also produce a tire steel ring removing + cutting all-in-one machine. It is the most advanced truck tire side cutter on the market, which can directly separate the rims of truck tires at one time.

Whether the annual output of recycled rubber breaks through 10,000 tons, or the output value of pyrolysis oil exceeds ten million, this tire cutting machine will improve your industrial efficiency and resource conversion rate.

If you are interested, you are welcome to contact us for a tire recycling solution!
